WAREHOUSE PALLET RACKING SYSTEMS

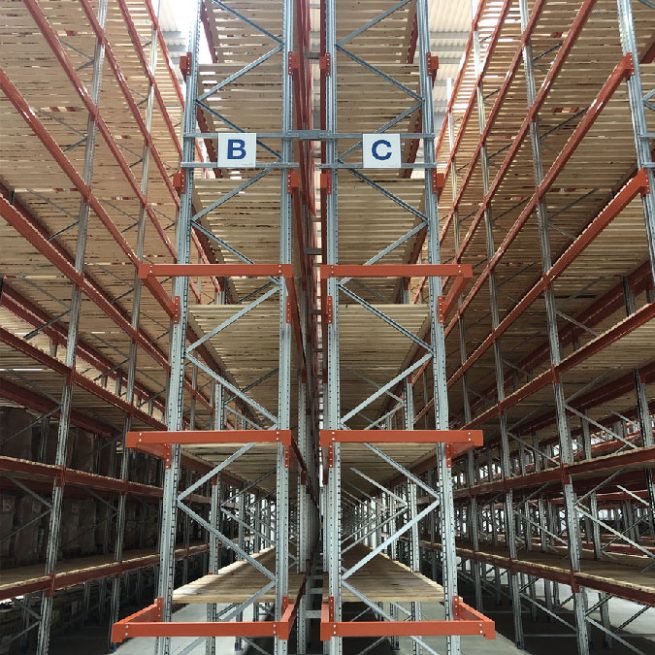

Double Deep, based on the concept of wide aisle pallet racking, Double Deep Pallet Racking and warehouse racking offers greater pallet storage density by eliminating a number of truck aisles and by moving together back-to-back bays to give access to 4 pallets depth per aisle.

The advantages of the warehouse racking systems are its increased storage capacity. Storage is suited to uniform pallet loads and the first pallet into the system per lane would be the last to be picked and would not be suitable where stock rotation was an important requirement.

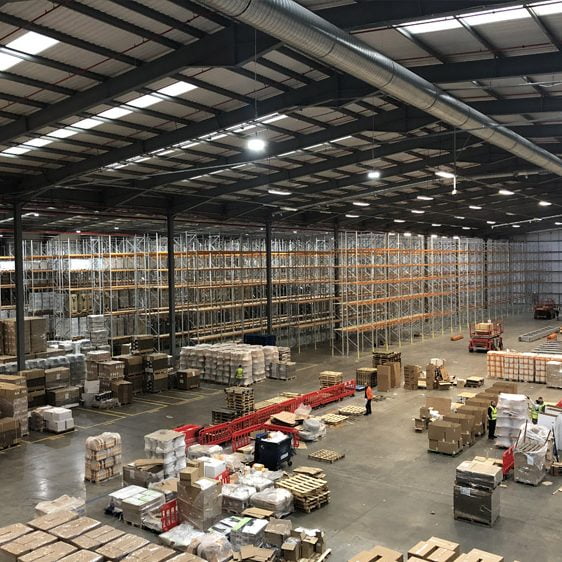

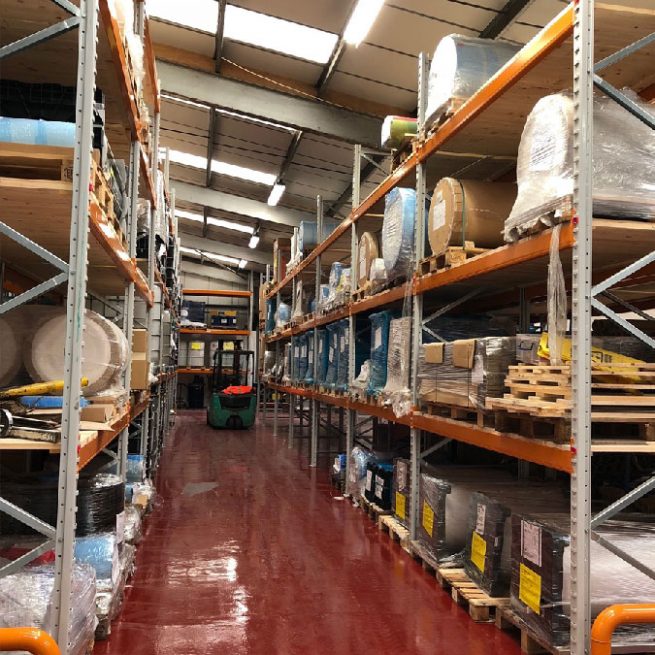

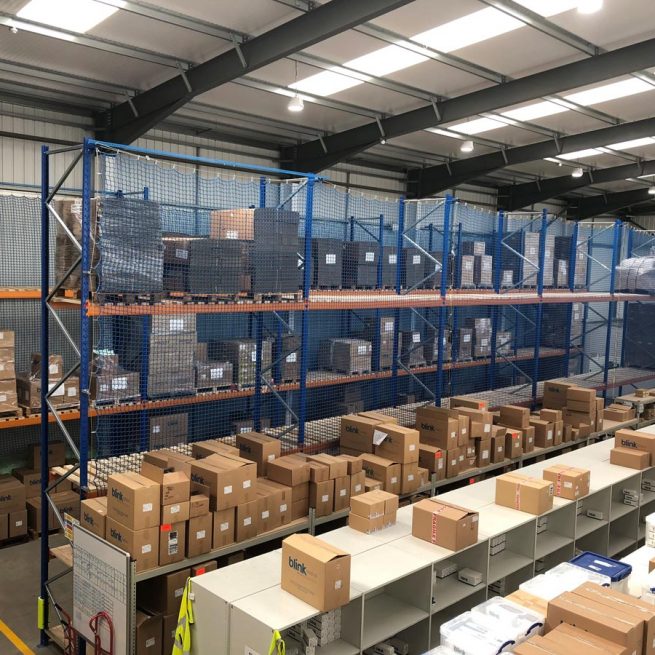

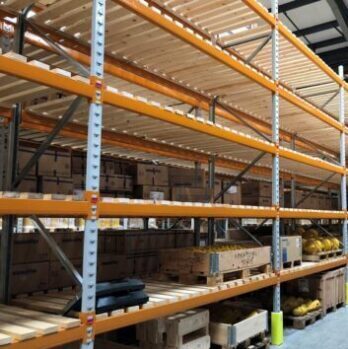

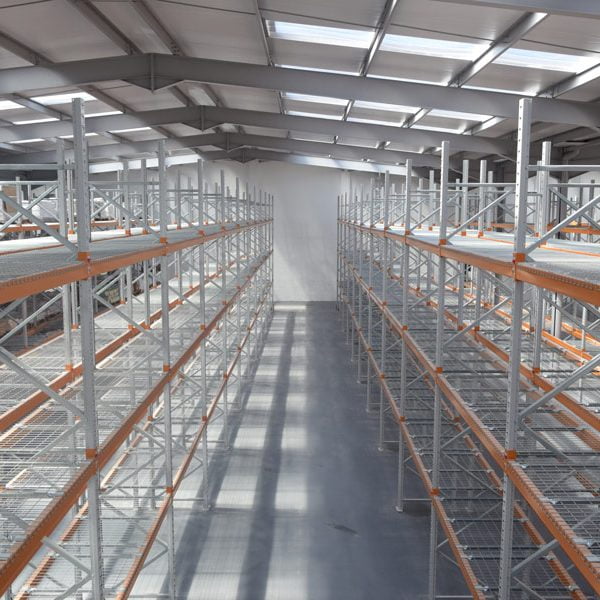

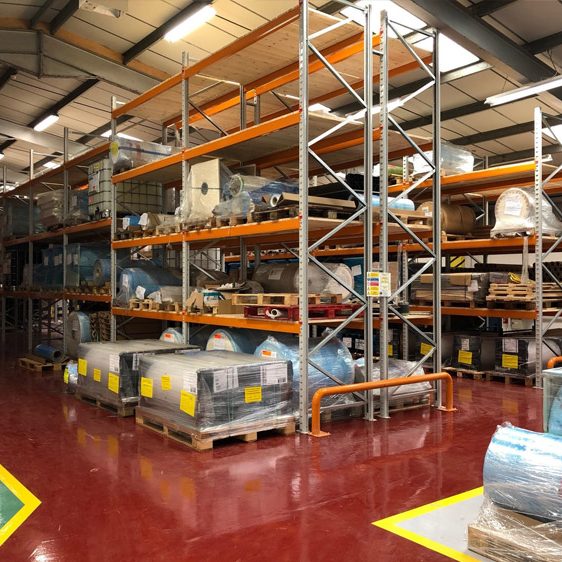

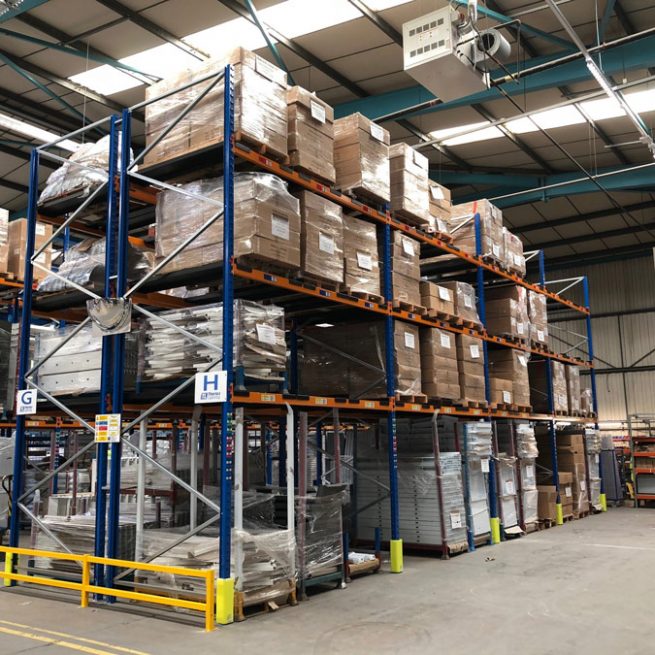

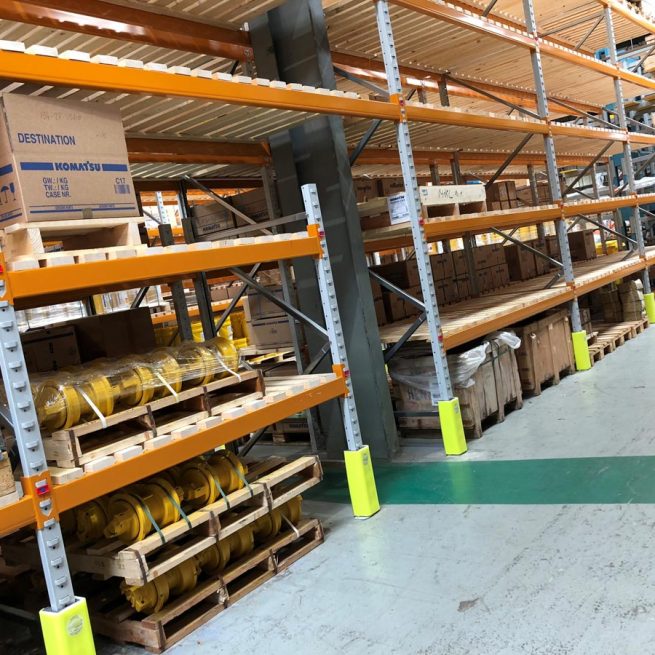

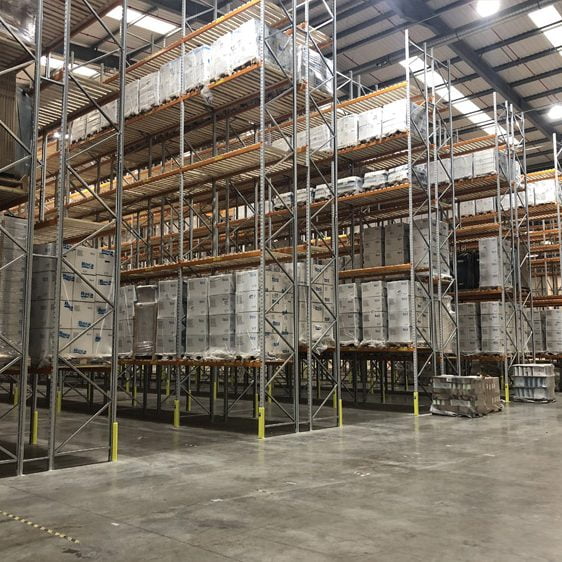

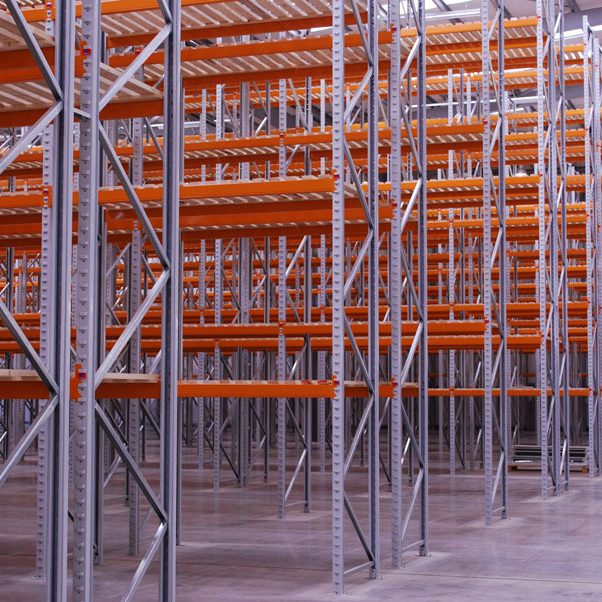

Wide Aisle Adjustable Pallet Racking is the most popular form of storage for palletised loads and is widely specified in virtually every industry and easily adapts to the vast range of products needing to be stored.

All kinds of palletised loads can be accommodated and as the beams are adjustable, the racking can be adapted to cater for changes in the type or size of goods stored. This heavy duty storage system is easily installed and highly versatile, giving direct access to individual pallets.

• The most universal system for direct and single access to each pallet.
• It maximises space available for storage.
• Total stock control. Each storage space is taken up by single pallet.
• Can incorporate longspan beams for manual selection of goods.

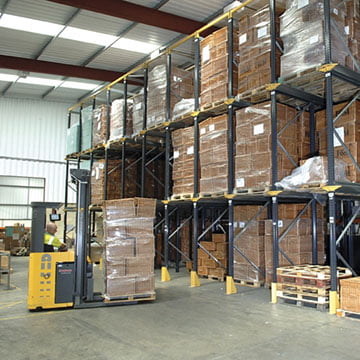

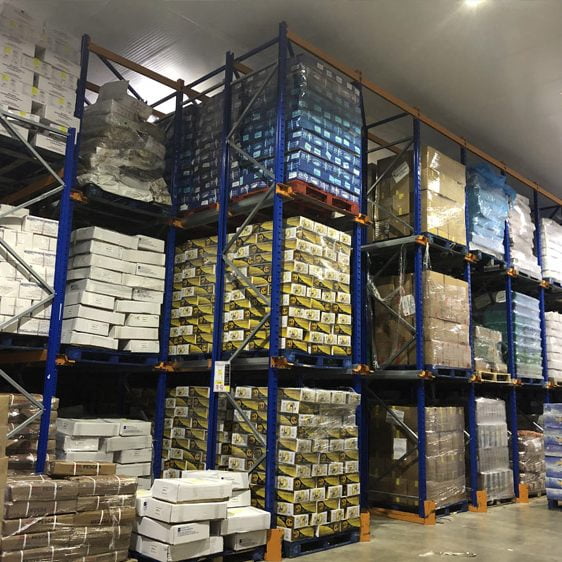

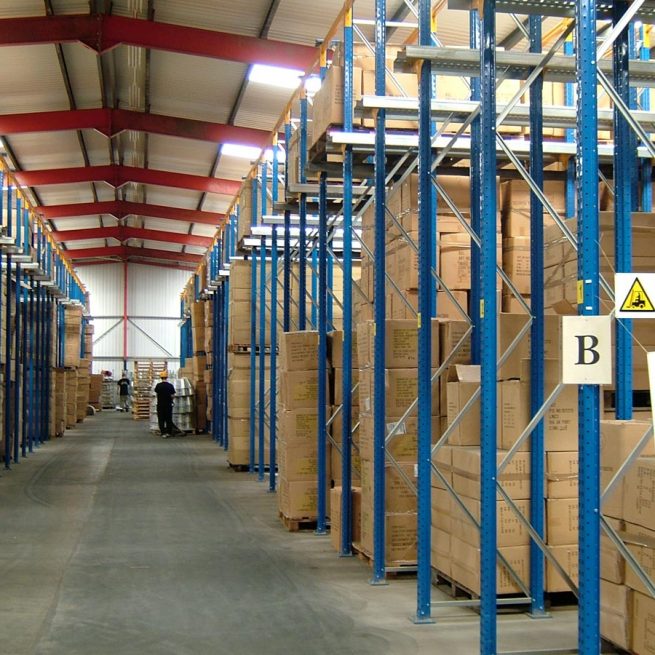

Drive-in pallet racking has been developed for handling products in situations where maximum density and economical storage is more critical than stock selectivity or stock rotation.

This extremely strong system uses the minimum amount of components to allow maximum cost effectiveness as well as maximum use of the available cubic space to store a greater quantity of pallets overall. Other than block stacking pallets there is no other more effective palletised storage method at using both floor space and cubic capacity.

Drive-in pallet racking is especially suitable for easily damaged or fragile loads that cannot be block stacked. Drive-in pallet racking is commonly used in cold storage applications and is also suitable for all bulk storage situations.

• Ideal for homogenous products with a large number of pallets per SKU.
• It allows products of a single SKU to be stored in the same lane.
• It only requires a minimum number of aisles to operate and enables maximum use of space.

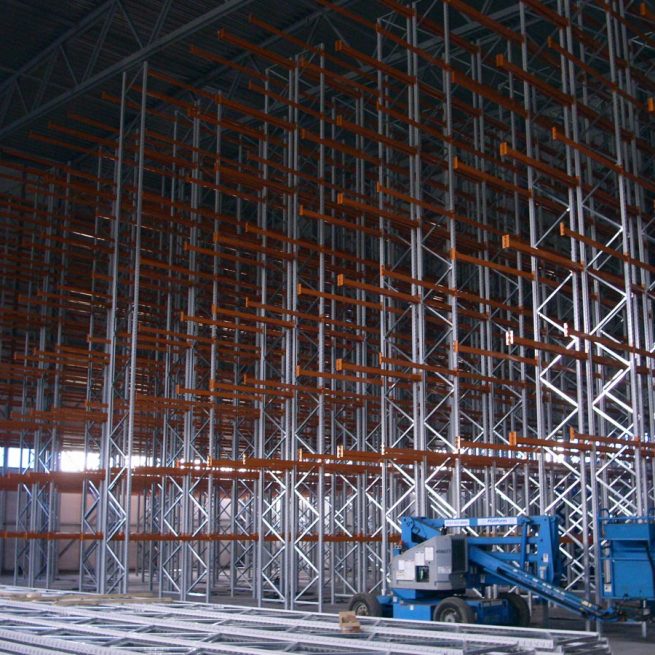

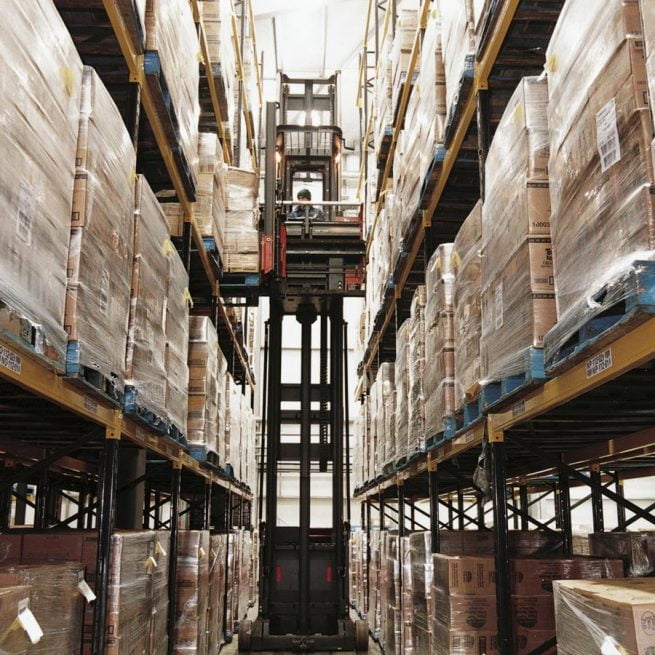

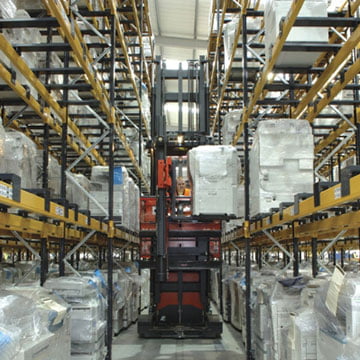

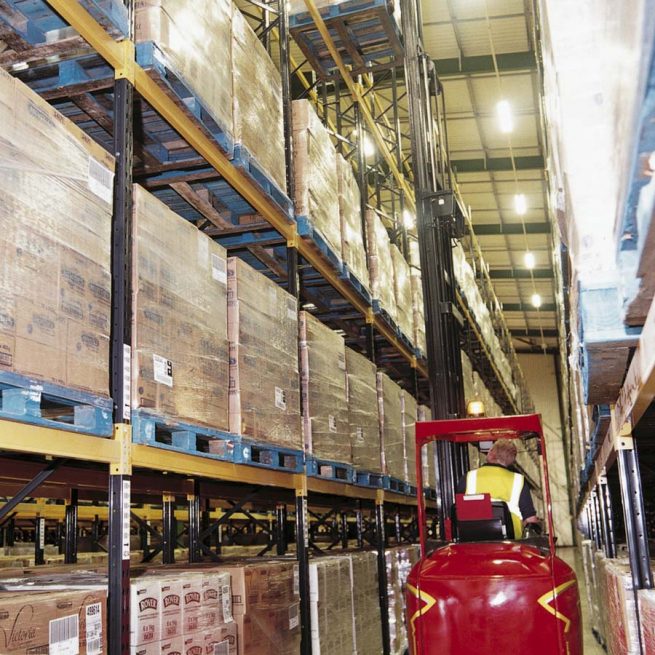

Through the use of specialist handling equipment, the operating aisle between Narrow aisle pallet racking faces can be greatly reduced, thereby increasing the density of storage to utilise floor area and building height more efficiently. The individual accessibility of pallets and goods is excellent and as storage locations can only be accessed using specialist equipment then the security for valuable stock is increased. In addition, the more sophisticated handling features of the very narrow aisle trucks improve the safety of load handling within the pallet racking system.

Truck guides within the aisle (usually floor mounted rail or wire guidance) also help to reduce the risk of rack damage, therefore resulting in improved maintenance costs.

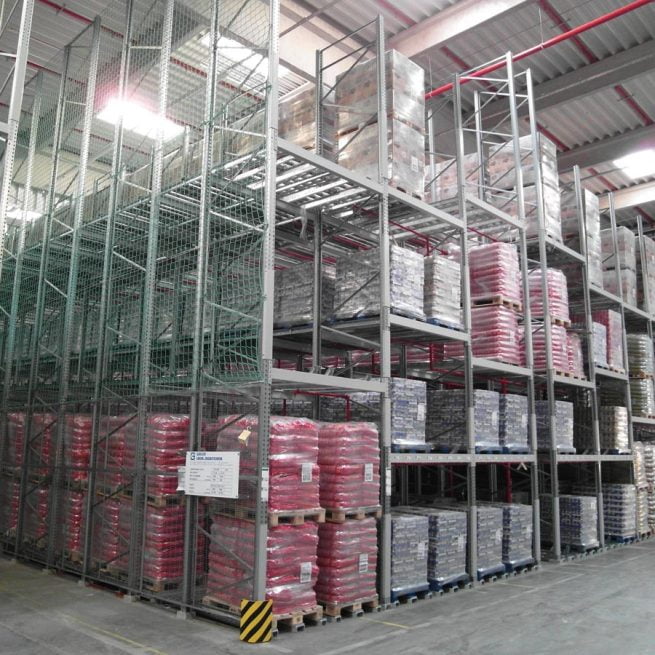

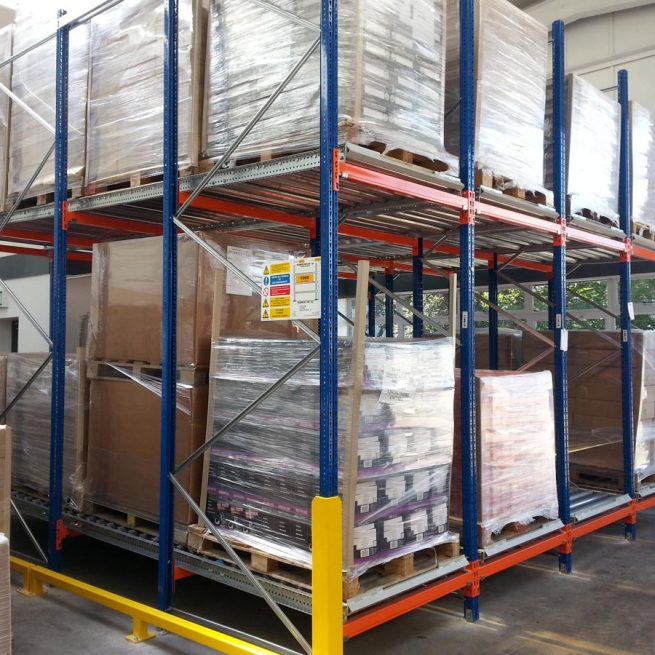

Push-back pallet racking provides fast pallet access and gives up to 25% more storage. The system allows pallets of varying types and sizes to be stored together, two, three or four deep with quick and easy access to all lanes.

Push-back pallet racking offers maximum use of floor space by getting more pallets into a given area. Pallets are loaded in sequence onto wheeled carriers of varying heights which are ‘pushed back’ on inclined steel channels that utilise the full depth of the racking. When pallets are retrieved, those remaining roll forward into position at the picking face.

This system uses standard fork-lift trucks and doesn’t require specialist handling equipment.

• Suitable for load marshalling, bulk storage such as in cold stores or for bulk handling.
• Ideal system for storing perishable goods.
• Suitable for use in any industry or distribution sector.
• Maximum capacity as this is a compact storage system.
• Time saved in pallet handling.

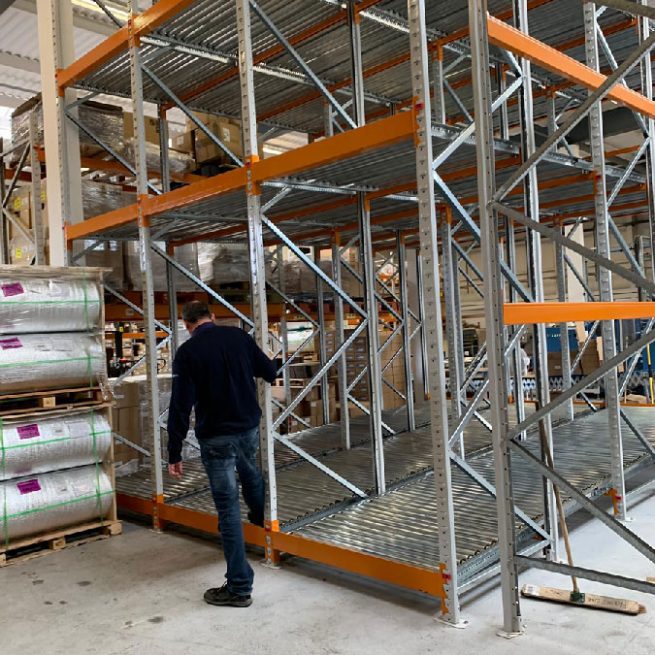

Mobile pallet racking considerably increases storage capacity without compromising direct access to each pallet. The pallet racking is placed on guided mobile bases that move laterally, removing aisles and opening only the aisle that is needed at any given time.

This system can be used by all types of standard or specialised fork-lift trucks including narrow aisle equipment.

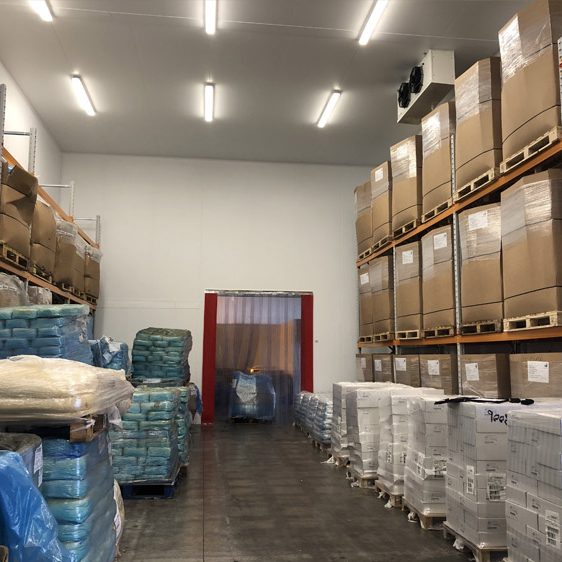

Optimal system for cold stores of both refrigeration and freezer types.

The bases are fitted with motors, drive devices, electronic equipment and safety systems which guarantee safe and effective functioning.

• Optimal system for cold stores (both refrigeration and freezer types).
• Increase in warehouse capacity.
• Elimination of individual access aisles.

Pallet Racking Live Storage are compact structures that incorporate roller track sections placed on a sloped lane to allow the pallets to slide over them. the principle of bringing the goods to the operator works extremely well, the system working on a first-in / first-out basis (FIFO) with one face used for feeding in goods and the other face for picking. Very dense storage is achieved along with time savings and greater accuracy in pallet location, organisation and productivity.

• Ideal system for storing perishable goods.
• Suitable for use in any industry or distribution sector.
• Enables perfect rotation of stored products (FIFO system, the first pallet to be put in is the first to be taken out).
• Maximum capacity as this is a compact storage system.
• Time saved in pallet handling.
